Product overview
ZXB type self-priming pump, its mark, rated performance point and size are equivalent, using the international standard 1S02858.
ZXB type self-priming pump has "a drainage, life-long self-priming" and other functions.
ZXB type self-priming pump using advanced technology design of the flow parts, high efficiency, short self-priming time, and without the use of bottom valve, direct start, automatic water, self-priming height can reach about 5 meters.
Application: this series of pumps are mainly used in oil refinery, petrochemical industry, coal chemical industry, power plant, environmental protection engineering, sewage treatment, cement plant and other industries and fields.
Suitable for conveying all kinds of clean, non-granular or containing a small amount of particles and other neutral or corrosive media.

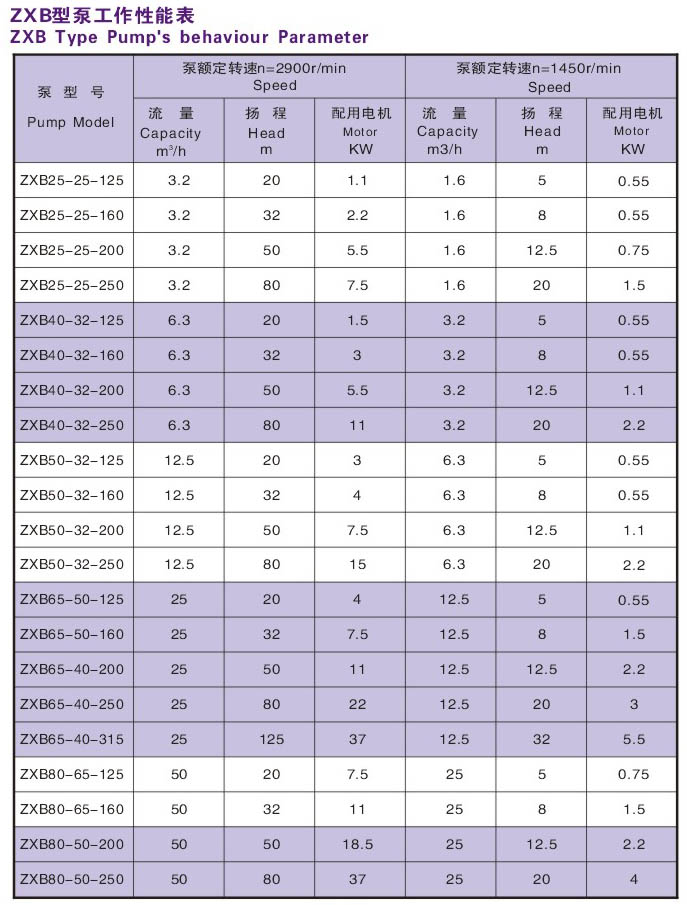

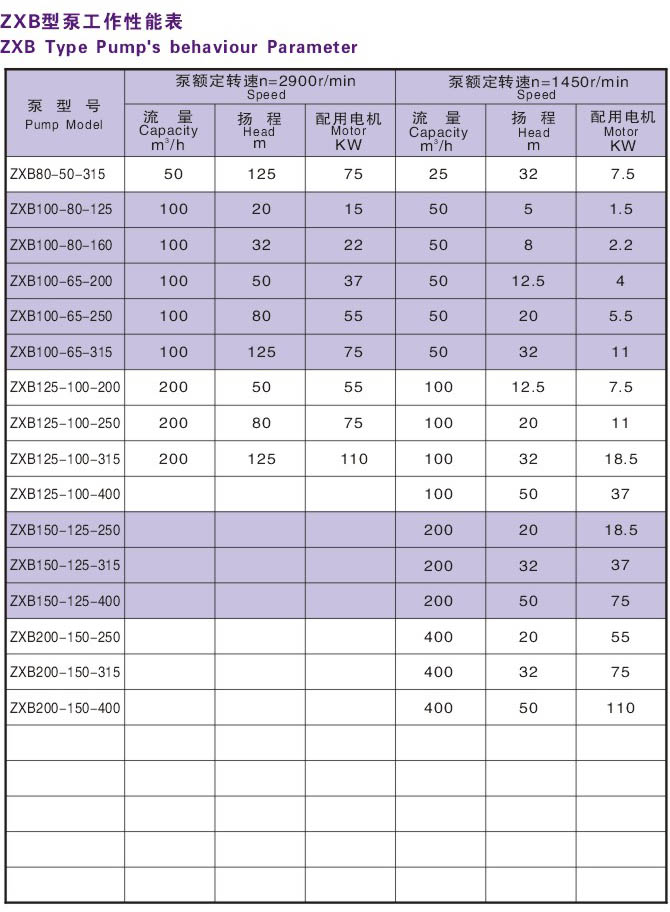

The performance of the pump∶ the flow ranges from 1.6m3/h to 400m³/h， while the lift ranging from 5m to 125m. The up-sucking height is not more than 5 meters.
According to different conveying media, such materials as cast iron,cast steel,1Cr18Ni9Ti, 1Cr18Ni12 Mo2Ti.316,316L,Ti,etc can be chosen for the liquid-contacting material of model ZXB self-sucking chemical centrifugal pump. Description of pump model
ZXB50-32-160A
Z-code of self-sucking pump
B-code of chemical centrifugal pump
50-inletdiameter of pump (mm)
32-outlet diameter of pump (mm)
160-nominal diameter of the blade wheel of pump(mm)
A-sequence of blade wheel diameter cutting, shown as A, B, C.
